HV 6/10KV Flexible Mining Power Cable MYPTJ Underground Electrical Cable
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Voltage Flexible Mining Rubber Electrical Cable | Warranty | 1 Year |
|---|---|---|---|
| Customized Support | OEM | Place Of Origin | China,Chongqing |
| Brand Name | KE FEI TE | Model Number | MYPTJ |
| Type | Underground Coal Mining Rubber Cable | Feature | Explosion-proof,oil Resistant,wear Resistant,waterproof,Flexible,Corrosion Resistant |
| Power Source | Electrical Cable | Application | Electricity Transmission For Underground Coal Mine Equipment |
| Packing | Wooden Drum,wooden Pallet,plastic Pallet | MOQ | 100 Meters |
| Voltage | 6/10KV | Conductor | Tinned Copper,Copper |
| Sheath | Rubber | Insulation | EPR |
| Highlight | HV Mining Power Cable,MYPTJ Underground Electrical Cable,MYPTJ Mining Power Cable |
||
Product Description
Flexible Rubber-Sheathed Tinned Copper Core Mining Cable with Metal Shield for Underground Coal Mine
Metal Shield Surveillance Type Oil and Wear Resistant Rubber Sheath Tinned Copper Conductor Flexible Mining Cable
High Voltage 6/10KV Tinned Copper Core Metal Shield Rubber Mining Cable

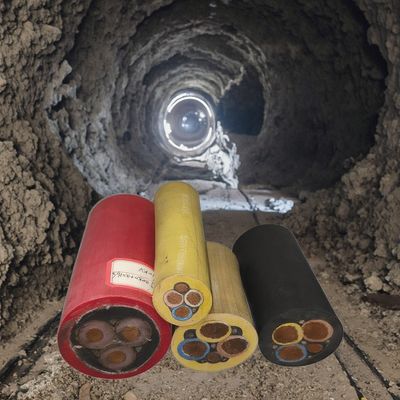

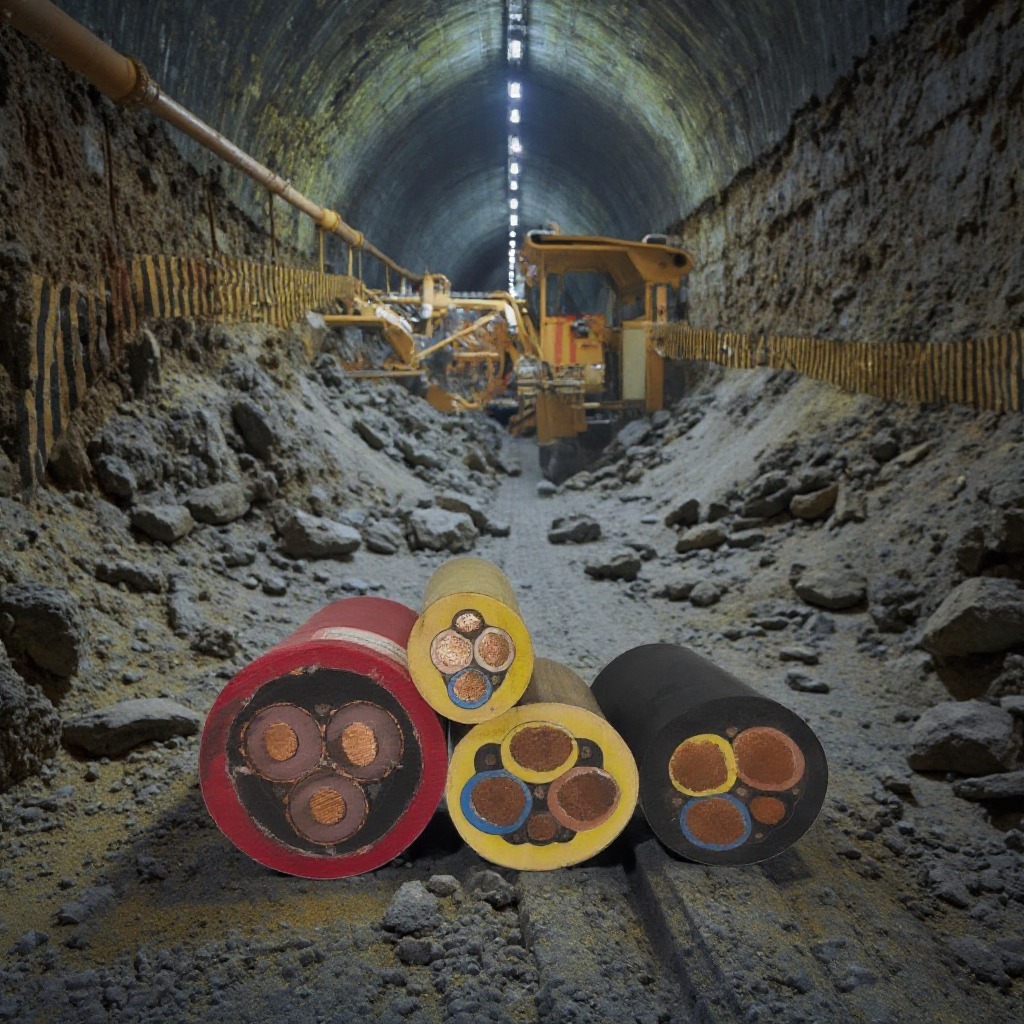

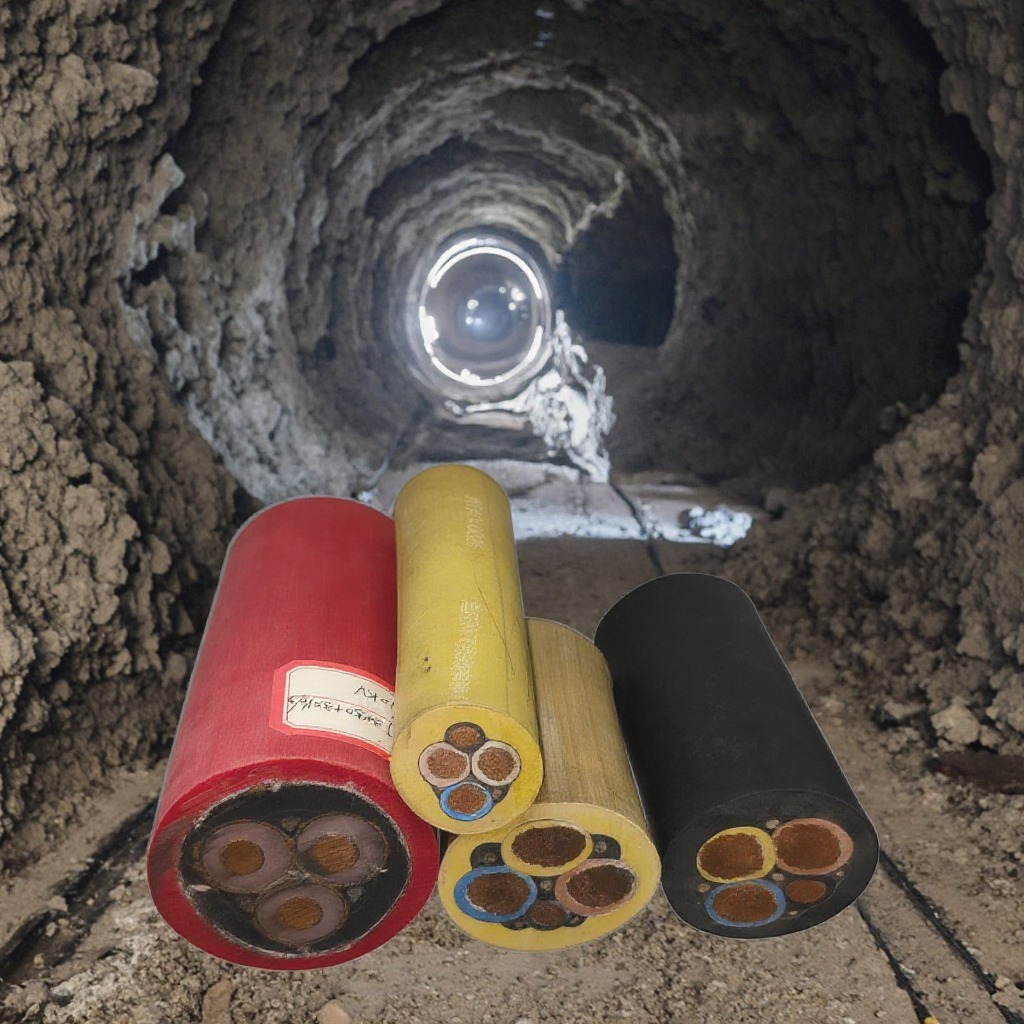

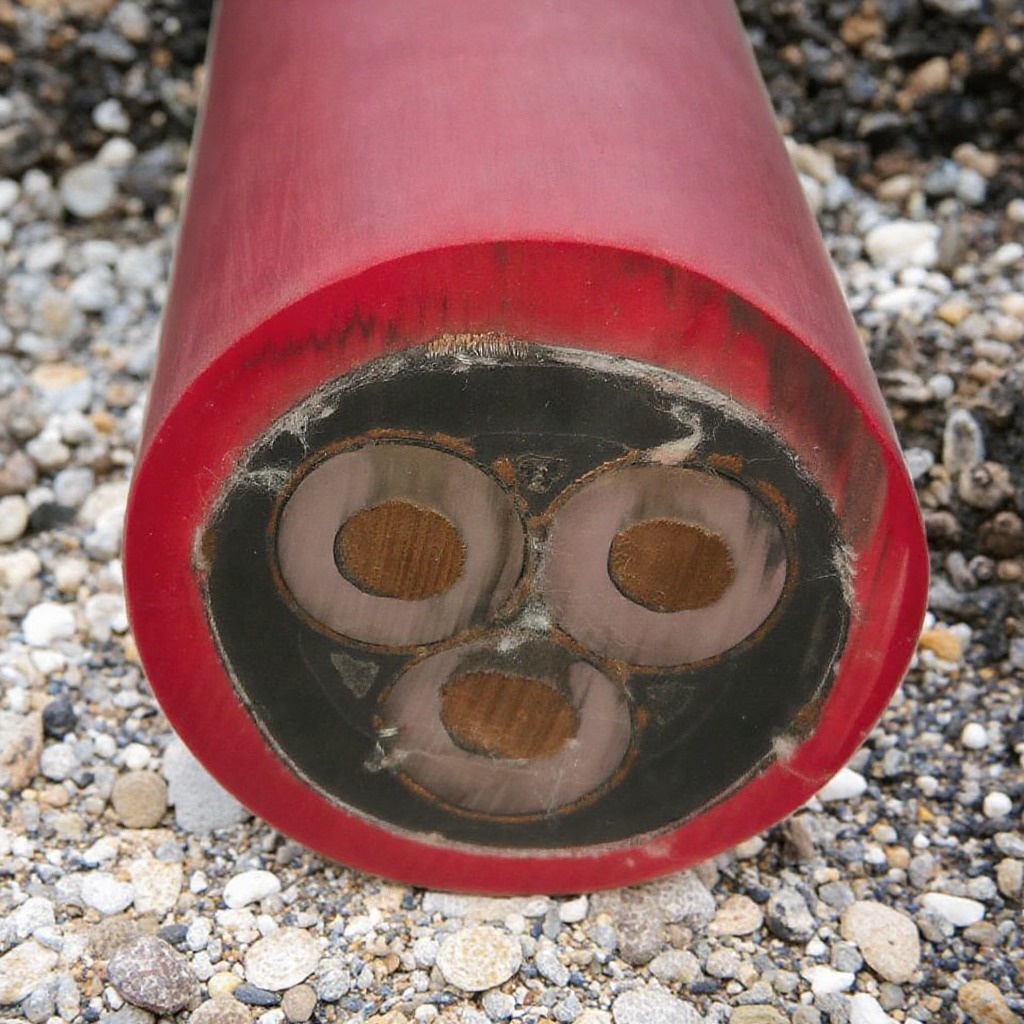

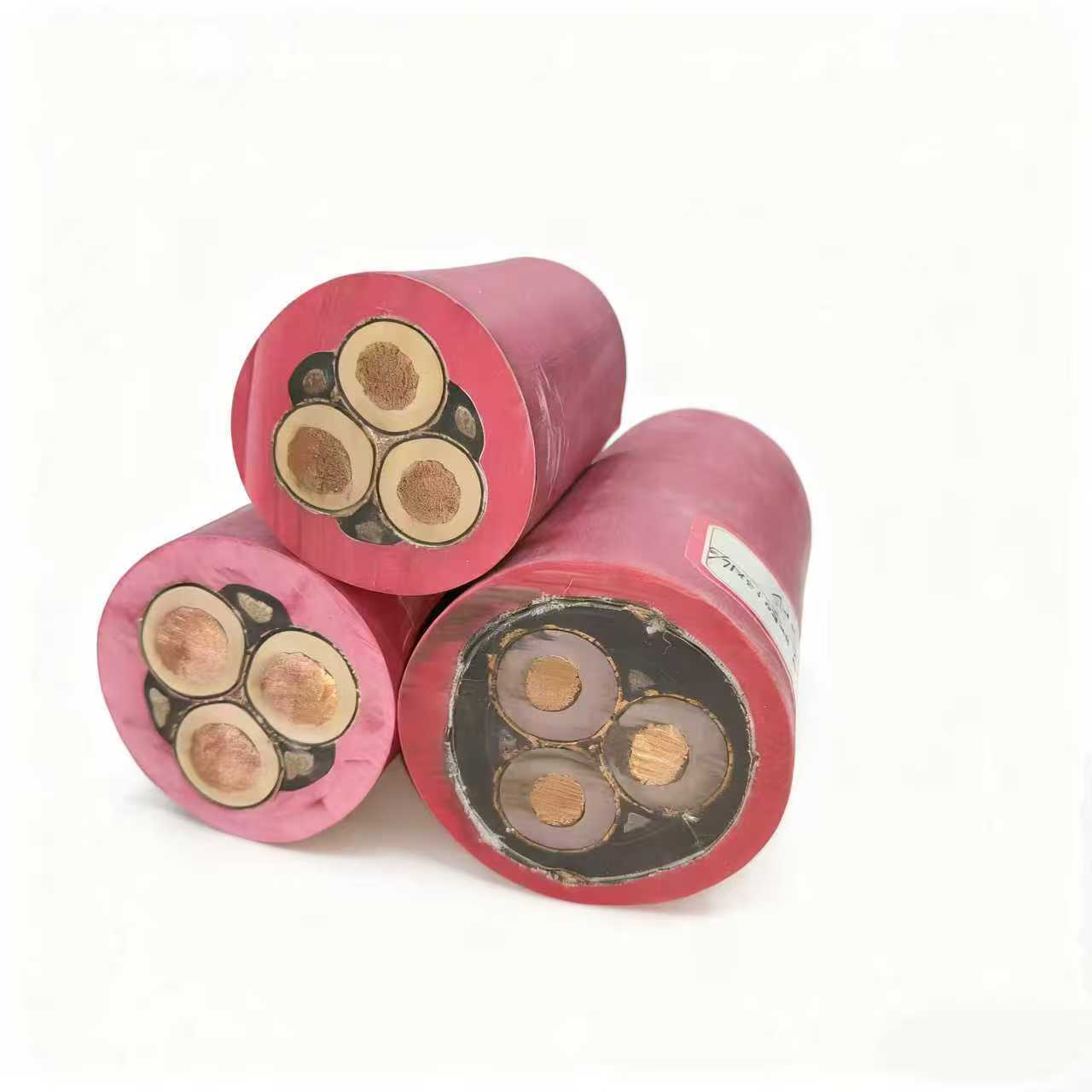

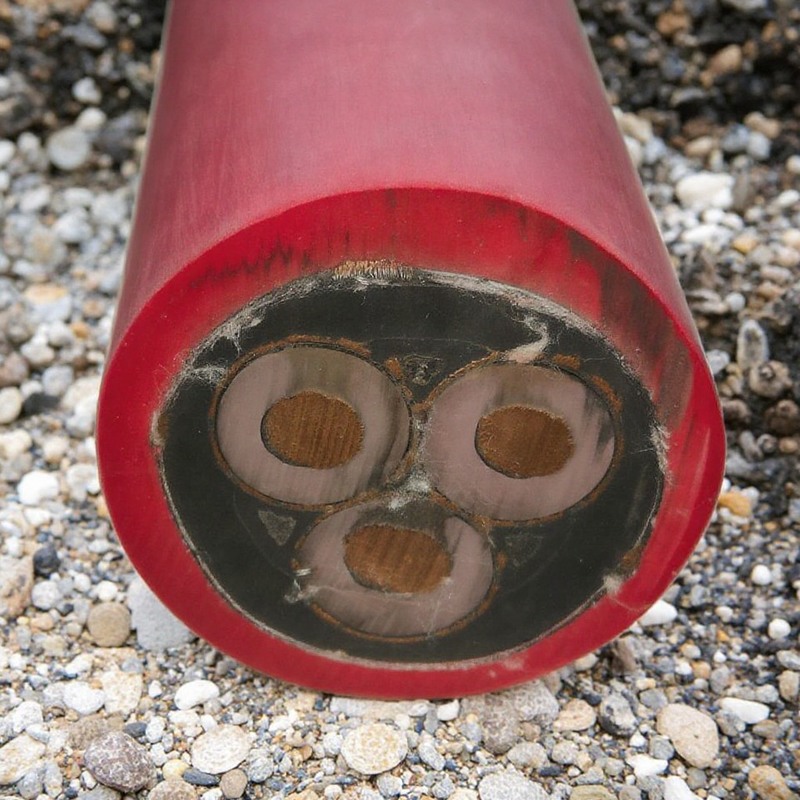

MYPTJ cable is composed of twisted tinned copper cores, rubber insulation, rubber sheathing, and metal shielding. This mobile metal shielded monitoring type rubber-coated flexible cable is designed for underground coal mines, primarily used for power transmission in mobile equipment underground. Capable of long-term stable operation in the humid, dusty, and corrosive gas environments of coal mine shafts, with a typical operating temperature range of -30°C to 65°C.
Product Features
- Rated power frequency voltage U0/U: 6/10Kv,8.7/10KV
- Tinned soft copper conductor with excellent flexibility and stable electrical performance
- Rubber insulation
- Flame retardant, wear-resistant, and oil-resistant rubber sheath
- Rubber filler
- Operating temperature range: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Maximum conductor temperature: 65°C
- Tinned copper conductor prevents oxidation and improves conductivity
- Features: Flexible, waterproof, tensile resistant, explosion-proof, wear-resistant, oil-resistant, and corrosion-resistant
- Metal shielding layer protects against electromagnetic interference and provides grounding protection
Technical Specifications
| No | Item | Data |
|---|---|---|
| 1 | Insulation | EPR/EPDM |
| 2 | Sheath | Rubber |
| 3 | Voltage | 6/10Kv |
| 4 | Conductor Operation Temperature | 65℃ |
| 5 | Shield | Metal shield |
| 6 | Conductor | Copper, Tinned Copper |
| 7 | Filler | Rubber |
| 8 | Product Name | High Voltage Metal Shield Rubber Mining Cable |
| 9 | Feature | Anti-electromagnetic interference, oil resistance, tensile resistance, waterproof, wear resistance |
Applications
This cable is primarily used for power transmission between mobile substations or mobile transformers in underground coal mines and equipment at the working face. It connects mobile transformers, roadheaders, shearer loaders and other large equipment. Suitable for underground coal mines with flammable and explosive environments such as gas and coal dust.
Product Features
This cable utilizes tinned copper conductors. The tin coating acts as a protective layer, isolating the copper from contact with air, moisture, and corrosive media. This effectively prevents oxidation and corrosion of the copper, maintaining low resistance at conductor connection points. It ensures stable current transmission, avoids increased energy consumption or equipment failures caused by excessive contact resistance, and delivers more stable electrical performance.
