HV Flexible Mining Rubber Electrical Cable For Power Transmission In Coal Mines
Contact me for free samples and coupons.
whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Voltage Flexible Mining Rubber Electrical Cable | Warranty | 1 Year |
|---|---|---|---|
| Customized Support | OEM | Place Of Origin | China,Chongqing |
| Brand Name | KE FEI TE | Model Number | MYPTJ |
| Type | Flexible Coal Mining Rubber Cable | Feature | Explosion-proof,oil Resistant,wear Resistant, Waterproof, Flexible, Anti Electromagnetic Interference |
| Power Source | Electrical Cable | Application | Electricity Transmission For Coal Mine Equipment |
| Packing | Wooden Drum,wooden Pallet,plastic Pallet,woven Bag | MOQ | 100 Meters |
| Voltage | 6/10KV,8.7/10KV | Conductor | Tinned Copper |
| Sheath | Rubber | Insulation | EPR |
| Highlight | Power Transmission Rubber Electrical Cable,HV Rubber Electrical Cable,Power Transmission Mining Electrical Cable |
||
Product Description
6/10KV Heavy Duty Flexible Rubber Tinned Copper Core Cable For Power Transmission In Coal Mines
6/10KV 8.7/10KV Tinned Copper Core Metal Shield Anti-electromagnetic interference Mobile Power Flexible Cable for mobile equipment power transmission in coal mines. High Voltage 6/10KV Tinned Copper Conductor Metal Shield Mining Power Cable.

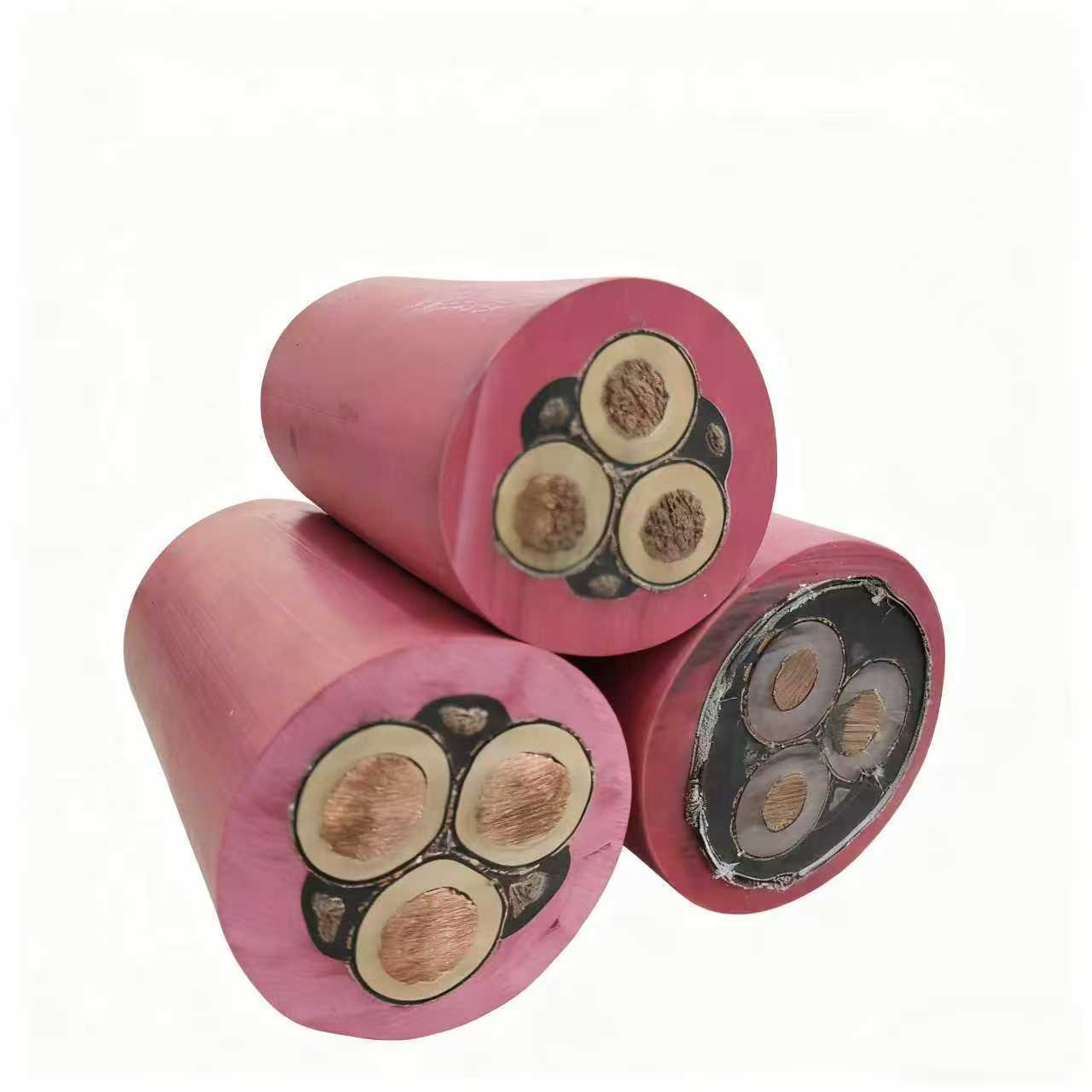

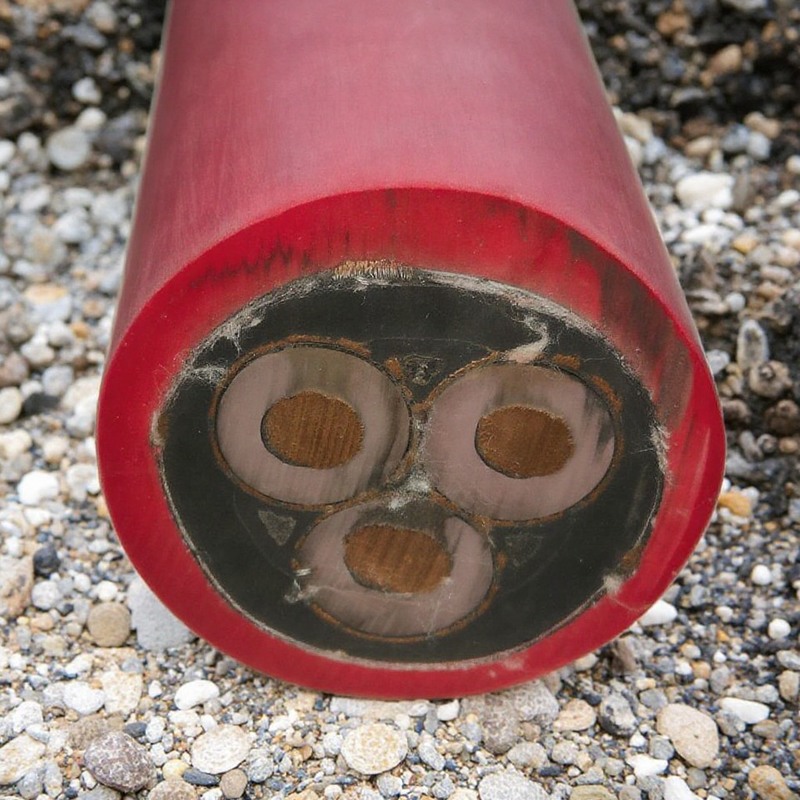

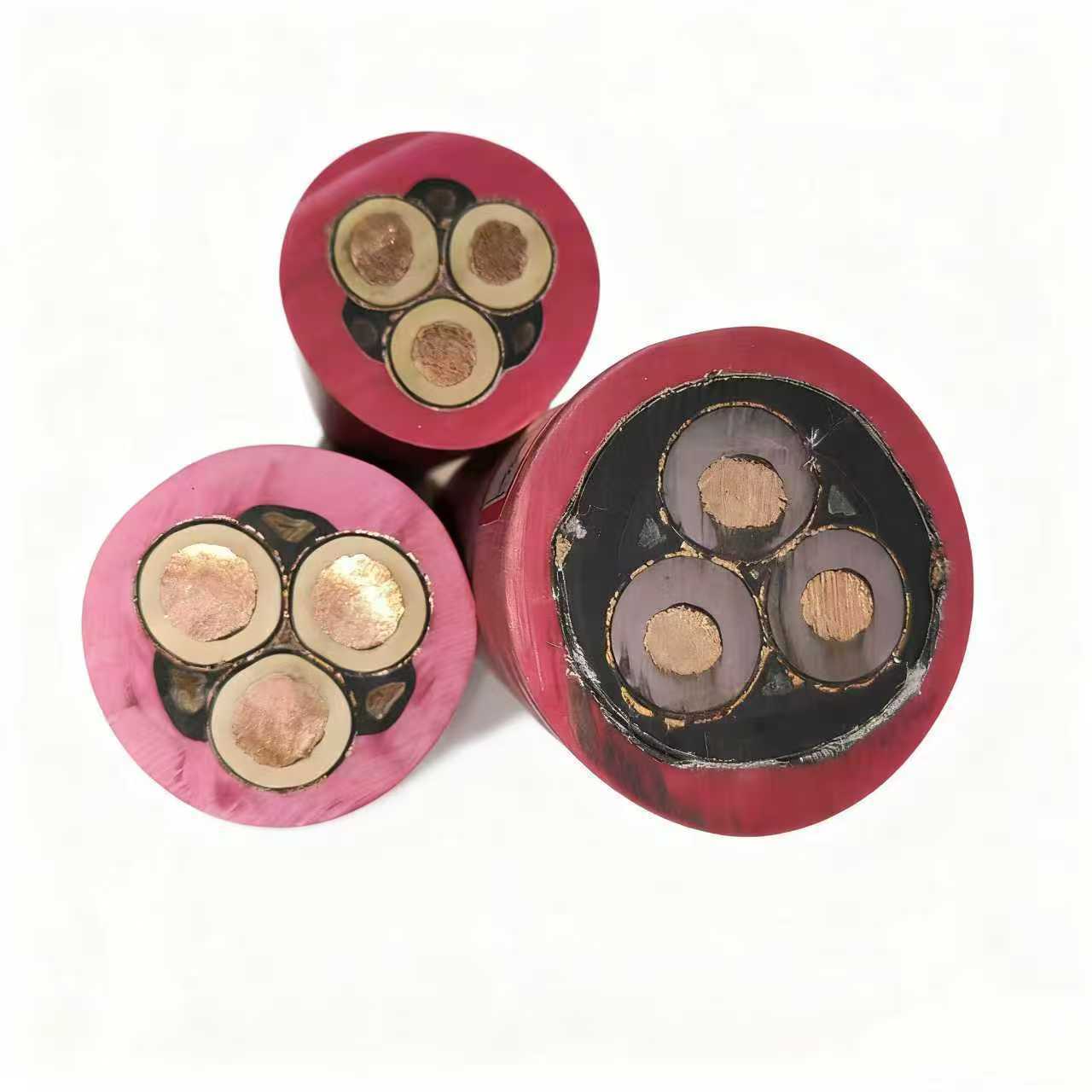

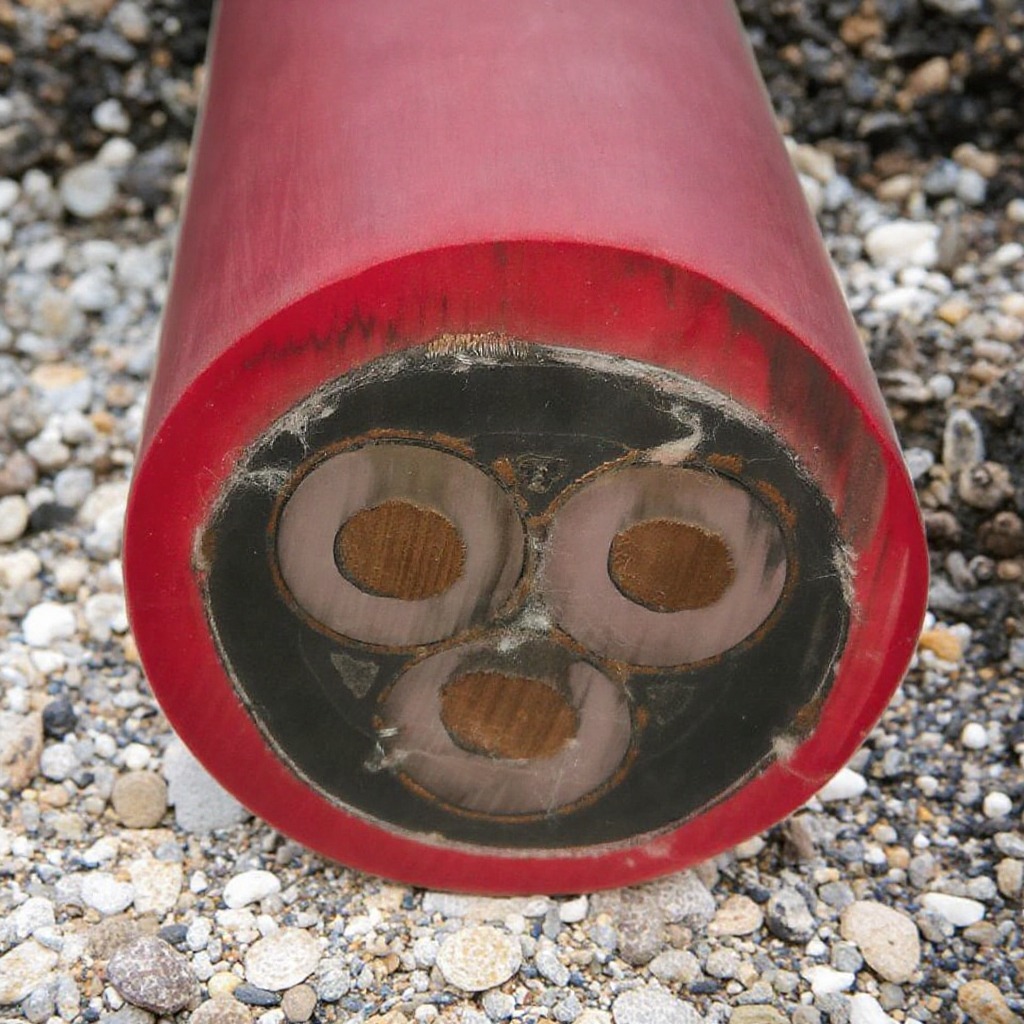

MYPTJ cable is composed of twisted tinned copper cores, rubber insulation, rubber sheathing, and metal shielding. It is designed for underground coal mines, primarily used for power transmission in mobile equipment underground. Capable of long-term stable operation in the humid, dusty, and corrosive gas environments of coal mine shafts, with a typical operating temperature range of -30°C to 65°C.
Key Features
- Rated power frequency voltage U0/U: 6/10Kv, 8.7/10KV
- Conductor: High-quality oxygen-free copper with high electrical conductivity
- Insulation: Compounds based on high-quality ethylene propylene rubber
- Shield: Internal metal shielding layer effectively isolates external interference
- Outer Sheath: Constructed from rubber material, offering excellent wear and corrosion resistance
- Operating temperature range: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Tinned copper conductor prevents oxidation and improves conductivity
- Features: Flexible, waterproof, tensile resistant, explosion-proof, anti-electromagnetic interference, wear-resistant, oil-resistant, and corrosion-resistant
Technical Specifications
| No | Item | Data |
|---|---|---|
| 1 | Product Name | High Voltage Flexible Rubber Mining Cable |
| 2 | Insulation | EPR/EPDM |
| 3 | Sheath | Rubber |
| 4 | Voltage | 6/10Kv, 8.7/10KV |
| 5 | Conductor Operation Temperature | -35℃~+65℃ |
| 6 | Shield | Metal shield |
| 7 | Conductor | Tinned Copper |
| 8 | Filler | Rubber |
| 9 | Feature | Anti-electromagnetic interference, oil resistant, tensile resistant, waterproof, wear resistant |
| 10 | Application | Power transmission for mobile equipment in coal mines |
Applications
This cable is a high-voltage, metal-shielded, surveillance-type rubber-sheathed flexible cable designed for mining applications. Its core design principle is to adapt to the complex, high-risk underground operating environment, specifically targeting equipment requiring high-voltage power supply, mobile operation, and safety monitoring.
- Coal cutters
- Scraper conveyors / transfer conveyors
- Mobile transformers
- Roadheaders
Tinned Copper Conductor Advantage
This cable utilizes tinned copper conductors. The tin coating acts as a protective layer, isolating the copper from contact with air, moisture, and corrosive media. This effectively prevents oxidation and corrosion of the copper, maintaining low resistance at conductor connection points. It ensures stable current transmission, avoids increased energy consumption or equipment failures caused by excessive contact resistance, and delivers more stable electrical performance.
Company Profile
Chongqing Kefei Cable Group Co., Ltd specializes in R&D and production of rubber cable for 40 years. As a large cable manufacturing enterprise, we produce various electrical cables including mining cables, rubber sheath cable series, and shield machine special high voltage cables. Our flexible cable series benefits from over 20 years of expertise, with capability to customize special cables according to customer requirements. Our products are globally distributed and widely used in coal mines, power stations, and transportation sectors, recognized for excellent quality and after-sales service.
Our Advantages
- Advanced Technology
- High Quality Design
- Perfect Testing Equipment
- Strict Quality Control
- Mature Process Flow
Production Equipment
Exhibition
Certification
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a production manufacturer. We only produce the best quality, and you can rest assured of the quality.
Q: Can you produce and manufacture products according to customer requirements?
A: Yes, we can customize the product according to your requirements.
Q: How can we guarantee quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q: How can i place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype / email / phone, in case of any delays.
