High Voltage 6/10KV Tinned Copper Core Metal Shield Monitoring-type Mining Cable

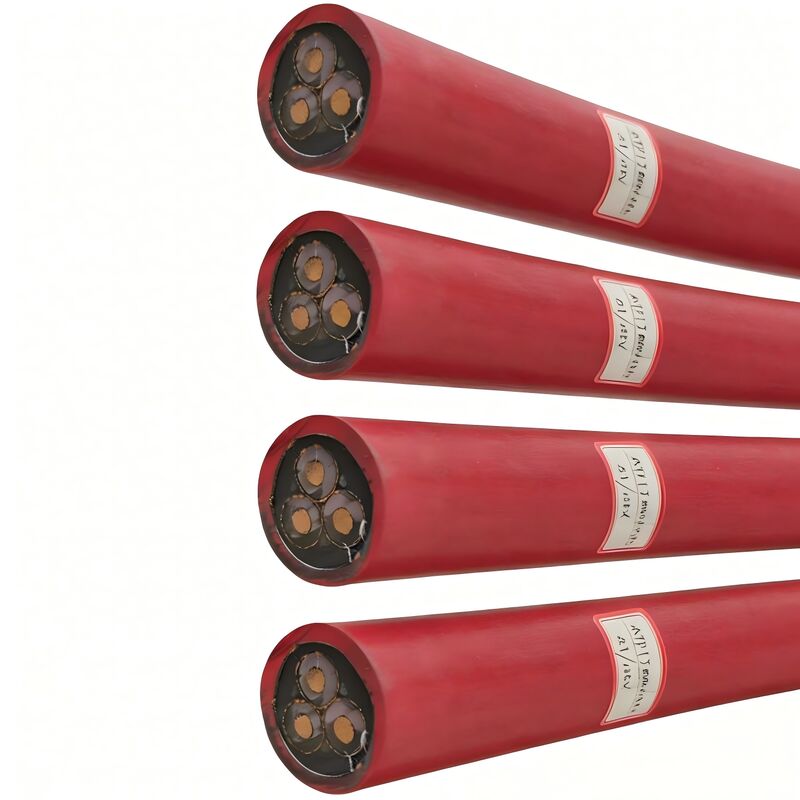

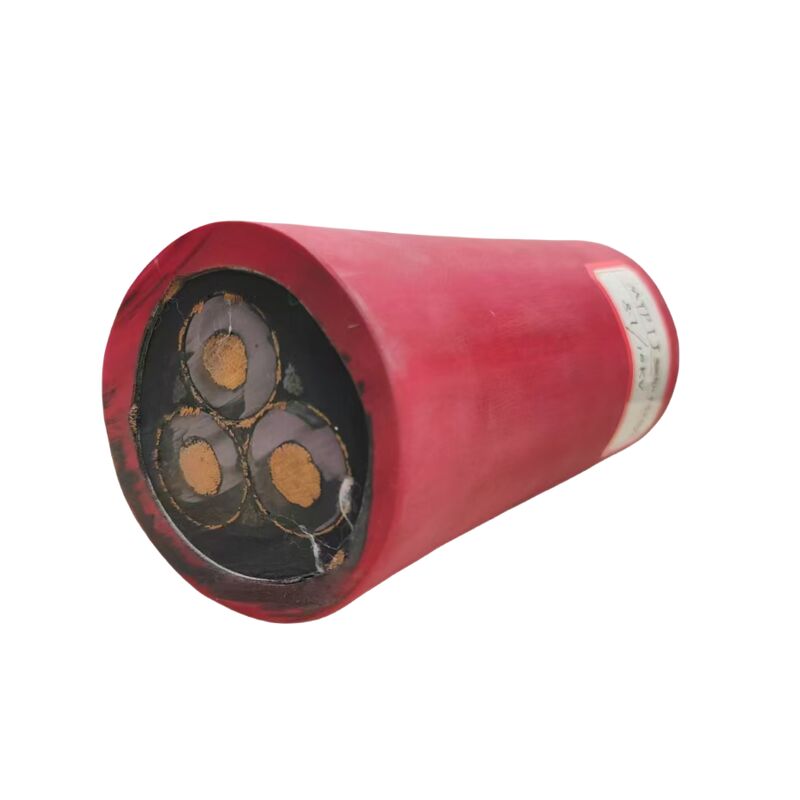

MYPTJ cable is composed of twisted tinned copper cores, rubber insulation, rubber sheathing, and metal shielding. This mobile metal shielded monitoring type rubber-coated flexible cable is designed for underground coal mines, primarily used for power transmission in mobile equipment underground. Capable of long-term stable operation in the humid, dusty, and corrosive gas environments of coal mine shafts, with a typical operating temperature range of -30°C to 65°C.
Product Features
- Rated voltage U0/U: 6/10Kv,8.7/10KV
- Conductor: Made from high-quality oxygen-free copper with high electrical conductivity, significantly reducing electrical energy loss
- Insulation: Insulating compounds based on high-quality ethylene propylene rubber can withstand higher voltages, enhancing protective performance in harsh environments
- Shield: Internal metal shielding layer effectively isolates external interference, enhancing signal stability
- Outer Sheath: Constructed from rubber material, offering excellent wear resistance and corrosion resistance
- Operating temperature range: -35°C to 65°C
- Minimum bending radius exceeds 6 times cable diameter
- Maximum conductor temperature: 65°C
- Tinned copper conductor prevents oxidation and improves conductivity
- Features: Flexible, waterproof, tensile resistant, explosion-proof, wear-resistant, oil-resistant, and corrosion-resistant
- Metal shielding layer protects against electromagnetic interference and provides grounding protection
Technical Specifications
| No |
Item |
Data |
| 1 |
Insulation |
EPR/EPDM |
| 2 |
Sheath |
Rubber |
| 3 |
Voltage |
6/10Kv |
| 4 |
Conductor Operation Temperature |
65℃ |
| 5 |
Shield |
Metal shield |
| 6 |
Conductor |
Copper, Tinned Copper |
| 7 |
Filler |
Rubber |
| 8 |
Feature |
Corrosion resistant, oil resistant, tensile resistant, waterproof, wear resistance |
Applications
This cable is primarily used for power transmission between mobile substations or mobile transformers in underground coal mines and equipment at the working face. It connects mobile transformers, roadheaders, shearer loaders and other large equipment. Suitable for underground coal mines with flammable and explosive environments such as gas and coal dust.
Product Features
This cable utilizes tinned copper conductors. The tin coating acts as a protective layer, isolating the copper from contact with air, moisture, and corrosive media. This effectively prevents oxidation and corrosion of the copper, maintaining low resistance at conductor connection points. It ensures stable current transmission, avoids increased energy consumption or equipment failures caused by excessive contact resistance, and delivers more stable electrical performance.
